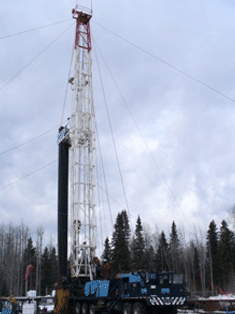

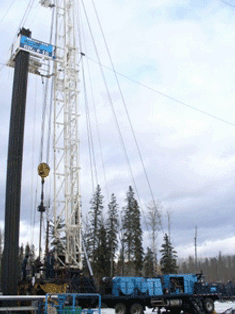

RIG 18:
2009 Free Standing KSM K550 Double Drum back in Rig
Powered by a Series 60 DDEC engine rated @ 475 HP
Transmission: Allison 5860, 6 speed torque drive
Main Drum Brakes: 106.6 cm x 25.4 cm c/w Johnson Brake Disc
Sandline Drum Brakes: 96.5 cm x 25.4 cm
Mast: 31.7 m KSM 62,200 daN hook load with 6 lines
c/w crown saver, Unity Rig 100 Ton traveling blocks
Racking Capacity: 3,600 m, 73mm tbg. in double stands
Drill Line: 25.4 mm, Sandline: 3000 m, 14.28 mm Polycore
|
|
|
|
| |
|
|
|
On the Approved Alberta Transportation Triaxle Service Rig List
|
PUMP:
2007 KSM 350 Mobile Pump and Tank Unit
KSM MP 350 x 35 mpa Triplex pump (101.6 mm x 127 mm)
Powered by a Series 60 DDEC engine rated @ 350 HP
7 valve manifold rated @ 35 mpa working pressure
Transmission: Allison 5860
|
|
TANK:
35m3 tank complete with settling trough
92m - 50.8 mm line pipe with chicsan joints
Poor Boy degaser, steam coil, mud mixing equipment
|
DOG HOUSE:
2003 KSM Mobile Combination Building pulled by a 2012 Model 7000 Diesel International
|
B.O.P.:
Hydril Sentry 179.3 mm x 35 mpa double gate B.O.P.
Hydril 179.3 mm x 35 mpa spherical Model SF
340 litre Accumulator
|
| |
|
|
AUXILLARY EQUIPMENT :
Oil Country Model CH 58-2 Hydraulic tbg. tongs
Oil Country 80 ton Model 'C' Air Slips
B. J. 100 ton tbg. elevators 60 mm x 73 mm
4 - 30 lb. Ansul fire extinguishers
2 - 30 minute air packs
2 - 73 mm safety valves
Rod elevators and wrenches up to 25.4 mm
55 KVA Isuzu power plant
|
|
|
